Machine Application:

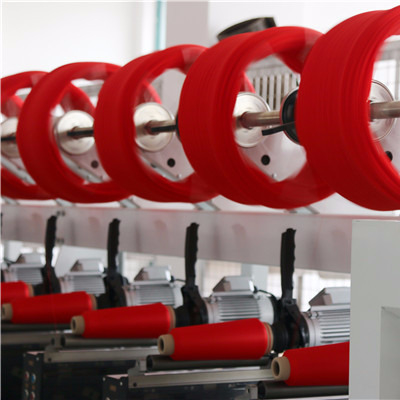

FHZN-800A Precision high speed cone winding machine( pineapple cone winding machine.
Innovative scheme, advanced technology and application. The winding speed of this machine is controlled by computer, which has the maximum of 1200 m/min. Precise and sensitive speed testing system can even ensure the winding length (weight). It is quite suitable for winding yarn of Nylon, Filament yarn, Polyester yarn, FDY, DTY And other chemical fiber.
hank to cone or cone to cone winding machine
-Winding structure part
Machine is single side working structure, adopt metal plate structure , each section is compose of 5 structure units
-Motive power parts
Contain frequency converter( or brushless motor drive),sensor, electrical control box, operation element/executive component
-Driving parts
Machine is single spindle individual drive, motor drive overfeed directly and take-up active winding cheese axis.
Types of winding | Precision winding/Electronic winding |
Mechanical speed | up to 1000m/min (process speed depending on process parameters) |
Package shape | Freely Programmable |
Traverse length | 30-260mm |
Take-up package diameter | 180 to 200mm |
Package weight | up to 4kg |
Supply package diameter | up to 320 mm |
suitable Yarns | Nylon, Filament yarn, FDY, DTY,Polyester yarn, Spun thread and etc. |
Take up bobbin | 0°-5°57' |
Layout | single side machine |
Number of spindles per section | 5 spindles/group |
Standard. number of spindles | 40 spindles |
Spindle Gauge | 438mm |
Drive | each spindle individual |
Installed power | 400w per spindle |
Density of winding | Freely programmable |
Size per section (L*W*H) | 2200*640*1610mm |
Per section weight | 300kg/4 head |
