Machinery Repair Shops Slider Type Automatic Toroidal Winding Machine

1.0 Sets
MOQ
Machinery Repair Shops Slider Type Automatic Toroidal Winding Machine
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Max. Load (KG): 10 KG
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: PLC, Engine, Gearbox, Motor
Coil Type: TOROID
Length of Axis (mm): 100 mm
Center Height (mm): 200 mm
Max.Transformer Capacity(kVA): 10 kVA
CNC or Not: CNC
Weight (KG): 40
Dimension(L*W*H): L60*36*64(cm)
Wire Diameter Range (mm): 0.08 - 0.35 mm
Warranty: 1 Year
Key Selling Points: High Productivity
Applicable Industries: Machinery Repair Shops, Manufacturing Plant
Showroom Location: United States
Universally matched shuttle model: 3.5 5.0 6.3 or customized
Copper wire diameter range(mm): 0.08 ~0.35 (mm)
Min. inside diameter of finished coil: 7 (mm)
Out side diameter of finished coil range: 10 ~80 (mm)
Height of finished coil range: 5 ~45 (mm)
Max. Speed: 1800rpm
Power source: AC220V /110V +10%, 50/60 Hz
Dimension: L60*36*64(cm)
Net weight: 40Kgs
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
After-sales Service Provided: Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support, Free spare parts
Local Service Location: United States
기본 정보
Model Number: 3.5 5.0 6.3 or customized
결제 및 배송 조건
Packaging Details: customs approved wood box for Slider type automatic toroidal winding machine
Supply Ability: 8000 Set/Sets per Year Slider type automatic toroidal winding machine
제품 설명
Product Description

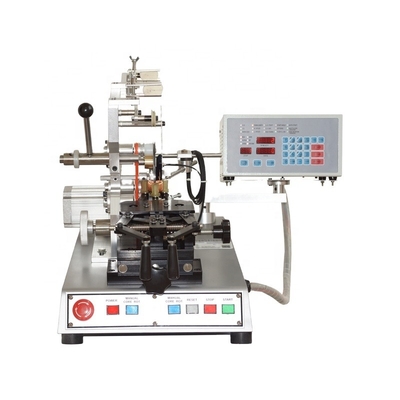

Description of SS900S6 slider type automatic toroidal winding machine :
The SS900S6 Slider type automatic toroidal winding machine adopts CNC toroid controller, it is slider type winding shuttle.It's an accurately and reliability digital toroid-winding machine. it is used for winding toroidal inductor, toroidal transformer,toroidal current transformer, toroidal current sensor, toroidal coil, toroid chock coil, power inductors, power magnetics,UPS inductor, converter inductors, watter metter sensors, etc.

Features of SS900S6 slider type automatic toroidal winding machine :
1. Collocate slider type winding head,interchangeable roller table with different size shuttle(magazine) for different toroid coil demensions, wire size, turns, so that to reduce the cost. one set standard automatic toroid coil winding machne include one PCS winding shuttle only, other sizes winding shuttles are optional.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for wire loading and winding.
4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.
5. Accurately count turns of winding by high frequency response photo-electricity sensor.
6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.

Specification of SS900S6 slider type automatic toroidal winding machine :
 Copper wire diameter: 0.08 ~0.35mm
Min. Finished ID: 7mm (will be different by shuttle size and coil height. )
Finished OD range: 10~80mm
Max. Speed: 1800rpm
Winding motor: 1/2HP DC brushless motor
Spread motor: Stepping motor
Memory capacity: 999 steps
Power source: AC220V /110V +10%, 50/60 Hz
Dimension: L60x36x64(cm)
Net weight: 40kgs
Model
Universally matched shuttle model
Copper wire diameter range(mm)
Min. inside diameter of finished coil (mm)
Out side diameter of finished coil range (mm)
Height of finished coil range (mm)
SS900B2
1.6 1.8 2.0
0.07 ~0.25
2.5
5 ~ 16
3 ~8
SS900B3
1.8 2.0 2.5
0.07 ~0.25
2.5
5 ~16
3 ~8
SS900B4
2.5 2.8 3.0 3.5 or customized
0.15 ~0.8
3
5 ~60
3 ~25
SS900S4
2.6 3.0 3.5 or customized
0.05 ~0.3
4.5
5 ~60
3 ~25
SS900B6
3.5 5.0 6.3 or customized
0.3 ~1.2
6
10 ~80
5 ~45
SS900S6
3.5 5.0 6.3 or customized
0.08 ~0.35
7
10 ~80
5 ~45
SS900B8
8 10 12 15 or customized
0.35 ~1.5
12
20 ~150
8 ~80
SS900S8
8 10 12 15 or customized
0.3 ~0.6
15
20 ~150
8 ~80
Related Products
Packing&Shipping
Package and transport
General package(Paper carton or plastic bag): For small goods, Package it with form and pack paper to guarantee unbroken during the transport.
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)
Our customers
Working shop
Our Services & Strength
Service tenet
Provide you the best service with “fast + satisfactory + safe”.
Warranty period
12 months long after the user received the product.
Warranty items
Only for abnormal breakdown caused by the machine design or manufacture defect,
free repair and accessory will be provided.
Technology service ability
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell
In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.
Use instruction
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be taken care. All done help to extend the use period.
User document management
Establish perfect user document management in EPR system, Every product running details would be followed to manage. The users would be taken good care.
About product
1. Product photo: All product photos are taken by real product, There is the color aberration between the product and photo, which is caused by shoot light, product size, manual technology and computer display etc. It’s not quality problem. Parts of products
are changed in appearance due to technology revolutionary and process improvement. SanShine would ensure the parameter of product is unchanged, The product couldn’t affect to use.
2.Product size: All parameters are all measured by manual just for reference. There is a small deviation due to the difference of measure tools, lot products and produce process. Real size should be accordance with the final delivery product.
3.Quality inspection: All products should be inspected strictly before shipment. Ensure the good function and appearan
FAQ
How to select the best suited Toroidal current transformer coil winderfor your toroid coil,
Tell us your toroidal coil of data as below please:
1, toroid core outside diameter before winding?
2, toroid core inside diameter before winding?
3, toroid core height before winding?
4, how many windings on this core?
5, how many turns of each winding?
6, how about the copper wire diameter of each winding?
7, provide pictures of product which is better.
