Machine Application:

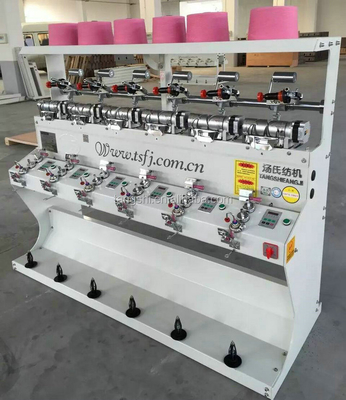

TS008M Small type Cone winding Machine, it’s mainly for cone to cone rewinding using with waxing device, suit for winding like Fiber yarns, Cotton yarns, DTY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.
Parameters:
| Bobbin type: | 6’(170mm) |
| Layout: | one-side, can be 2, 4, 6 spindles |
| Power Supply | Single phase 220V 50/60HZ |
| Driving | Every spindle per motor |
| Power Consumption | 0.09KW/spindle |
| Take-up package | Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15 |
| Yarn tension and waxing device | each spindle has a disc tensioner and waxing device |
| Auto Stop Device | Each spindle has yarn detector |
| Electronic Anti-Stack | Computer control |
| Cleaner device | Every spindle has a Mechanical yarn cleaner |
| Electronic Yarn Cleaner | Optional installed |
| Air Splicer | Optional installed |
| Dimensions | L 1900 x W 750 x H 1600 mm (6 Spindles) |
