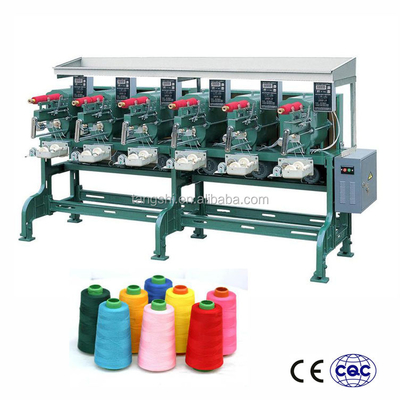

YF-A Sewing thread Cone winding machine is cone type and applicable for winding sewing thread with different materials such as pure cotton, Dacron and Kapron. It features as the fine effect, easy operation, safety and reliability. Suitable size of cone: from 3.4inch (85mm) to 6inch (150mm), according to customer’s needs.
Function features: It is equipped with the new generation computer measuring apparatus. It is equipped with the thread break auto-stop device. It is equipped with the electron tension and silicone oiling device. It is equipped with the disconnecting automatic memory function.
Can add and assemble putting(to be special order from the consumers) hopper and belt housing.
Product specifications and design subject to change without notice.
| H size | 4" | 5" | 6" |
| No of spindles | 6 Ding | 6 Ding | 6 Ding |
| Cone for each spindle | 2 | 2 | 1 or 2 |
| Thread Length | 0-10000(M) | 0-15000(M) | 0-30000(M) or 1000g |
| Motor | 380V/220V 50Hz 180W X 6 | ||
| Machinevolume | 2.08ML × 0.70MW × 1.05MH/2.08ML × 0.80MW × 1.05MH | ||
| Weight of the Machine | 400Kg | ||
| Measurement | 2.17ML × 0.80MW × 1.10MH/2.17ML × 0.90MW × 1.10MH | ||
| Weight | 500Kg | ||
