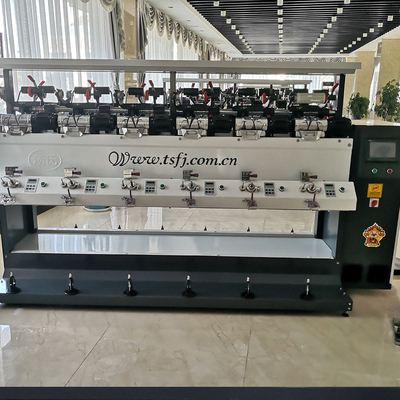

TS008 textile bobbin Soft cone Winder winding machine before yarn dyeing Please click here to view more products
|
Bobbin type |
5"(170mm) |
||
|
Layout |
Double-side, can be 12-96 spindles |
||
|
Power Supply |
Three phases 380V 50/60HZ |
||
|
Driving |
Every spindle per motor |
||
|
Power Comsumption |
0.09KW/spindle |
||
|
Take-up package |
Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15 |
||
|
Package Diameter |
Max.250mm |
||
|
Yarn tension and waxing device |
Every spindle has a yarn tension |
||
|
Auto Stop Device |
Each spindle install auto stop device |
||
|
Traverse Device |
Mechanical Traverse suit for soft winding |
||
|
Cleaner device |
Every spindle has a Mechanical Knife yarn cleaner |
||
|
Electronic Yarn Cleaner |
Optional installed |
||
|
Air Splicer |
Optional installed |
||
|
Blower cleaner |
Optional installed |
||
|
Lighting System |
contain |
||
|
Dimensions |
L 11850 x W 1080 x H 1500 mm |
||
Parameters:
1. Drive: every spindle per motor
2. Winding speed: Cotton: about 800M/min, Fiber: about 600 M/min
3. Has function of Anti-Hard-Edge and Electronic Anti-Stack.
4. Package Dia≤ 220mm; Take-up length: 152mm.
5. Each spindle with length counter.
6. Advanced control panel.Drum
TS008S High Speed Soft winding machine, it's mainly for the Yarn Dyeing preparing
using, suit for winding like Fiber yarns, Cotton yarns, FDY, Polyester yarns and etc, and it
can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and
well take-up finished shape, can alleviate the intensity of labour for next processing work.
Q: What is the real winding speed for this machine
A: It's depends on how the performance and take up package formed, if the take up package formed well, then you can increase the speed, normal winding machine is 600-800m/min
Q: My bobbin is some kind of special, is that workable on the machine?
A: We will make the spindle head base on the bobbin that customer provide.
Q: The yarn always break, how to solve it?
A: 1. Check the tension first, if the tension is too big, just reduce some weight
2.Check the yarn whether it's in the right path.
3.Check the quality of yarn, sometimes yarn breakage due to the weak yarn
Q: How to solve the problem if the package become too hard and start bounce?
A: Try to reduce the tension or speed
Q: Does your machine shake when full load running?
A: No, our machine frame is very strong, it's quite stable
Packaging&Shipping
Before loading,the machines are covered with waterproof plastic first,then packed in solid wooden case.
