Introduction of ZW016P type loose and tight type high speed winding machine
This machine for compact yarn production cone type, for needle loom, weaving machine, warping machine, hosiery machine use. The winding speed of the machine can be controlled automatically through the computer, up to 1100 M / min. The control of radial anti aliasing device is convenient. Advanced yarn clearing and tension mechanism with photoelectric yarn to avoid yarn winding. The precision and sensitivity of the device can be used to ensure that the length (weight) of the winding is uniform. Electric rotating waxing device can meet the needs of the yarn and the uniformity of the amount of wax. It’s the perfect machine for rewinding ,separate tube yarn (cotton, hemp, silk and chemical fiber yarn )

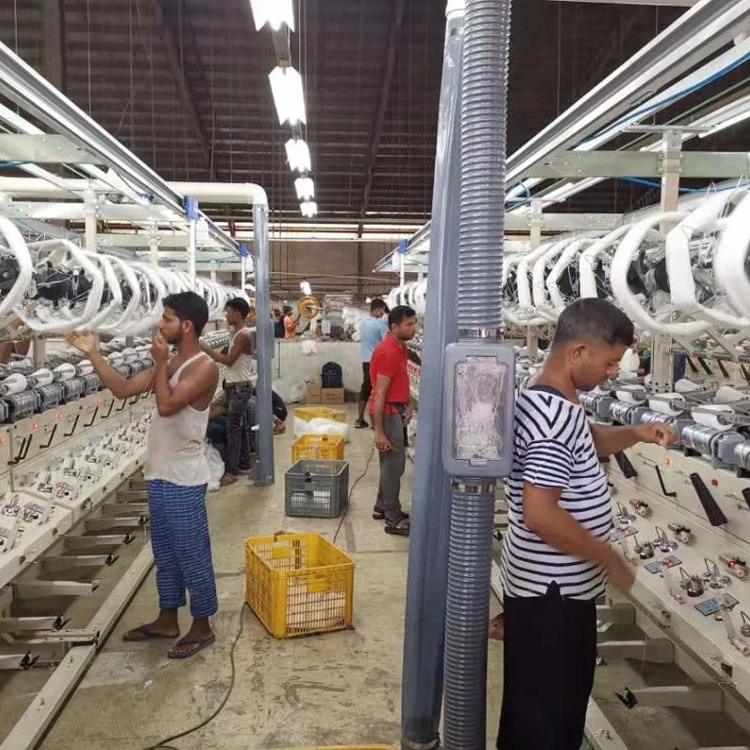

ZW016P type hank to cone winding machine
ZW016 type winding machine for chemical fiber, veil, filament, low stretch yarn, winding into conical or cylindrical, for the next process to use, the formation of good, high efficiency, no collapse phenomenon, reduce The next process of labor intensity, to adapt to high-speed production.
1, winding drive: a separate drive per spindle, frequency control.
2, winding speed and density: 300-1000 \ minutes.
3, with electronic yarn break from the stop function.
4, tube diameter and course: diameter greater than 290mm, 150mm.
5, with a single spindle length function.
6, advanced touch-screen man-machine interface.
Technical Parameters:
Bobbin size 6 "(170mm)
Structure double-sided machine, each (12-96) ingots
Power three - phase 380v 50 \ 60HZ
Drive single spindle independent AC motor drive
Consumption of 0.09 kilowatts \ ingots kw
Forming cylinder cylindrical \ cone 4 ° 20 ° 5 ° 57 ° 9 ° 15 °
The maximum diameter of the cheese is 200-290 mm
Yarn speed range 300-1000m \ min
Electronic anti - overlap device frequency changer control
Fixed length device programmable control, centralized control, display length
Tensioner Each spindle is equipped with a rotating self-cleaning tensioner and waxing
Mechanical Clearing Device Each spindle can be configured to fine-tune the mechanical clearer
Broken yarn automatic stop device Electronic yarn breakage
Speed control device
The electronic yarn device is optional
Air splicer optional
The suction air cleaner is optional
Photo system (with light) optional
Dimensions (mm) 13700 (length) x1050 (width) x1650 (high)
Haining JOVIAN Textile Machinery Co., Ltd is located in resort tide, leather capital of Haining City, Zhejiang Province. 5 kilometers from SHANGHAI-HANGZHOU express way and Hangjinqu (G60) express. Unique geographical advantage, with convenient transportation access.
JOVIAN is a comprehensive enterprise specialized in the research, development, sell and services. We covering an area of 20 acres, for modern standard workshop cover an area of about 3000square meters. We have the most edging facilities, and professional people of research, development, main production winding machine (ZW013 Type Precision Winder Machine, ZW016 Type High Speed Winding Machine, ZW280 Tpye ZW230 Type High-Speed Jumbo Pack Winder etc.) . ZW019 Type High Speed Doubling Machine, ZW015 Type Wool Spinning Winder, ZW0322 Type Doubling and Double-Twisting Machine Textile Wax and so on.
JOVIAN company attach importance to brand building, and formulate a complete set of scientific management systems. And we will continuous improvement and innovation, hope the science, management, quality, efficiency, integration into the every aspect of the business, improve the core competitiveness of the product and market resilience, to win a high admiration and is widely trusted at home and abroad.
Frequently Asked Questions
Q:What kind of work does your company do?
A:Our company is a professional manufacturer.We mainly dealing with many kinds of quilting machine,etc.accordance with customers' requirement.
Q:What are the advantages of your company?
A: We have many professional technical personnel.And we have more competitive prices,high quality
and better service than trading companies.
Q:What about your price?
A:Our price is very competitive because we are a factory.Please contact us if you are interested in
our products.
Q:What is your delivery time?
A:Within 20 days after receipt of down payment.
Q:What is your payment terms?
A:Telegraphic transfer (T/T),Letter of credit(L/C) etc.
