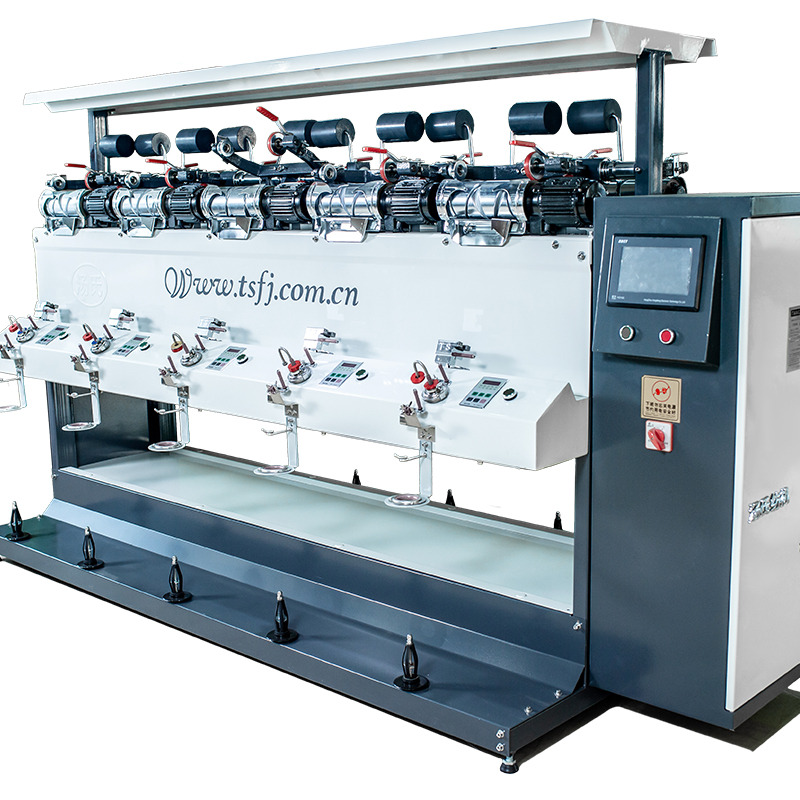

New TS008 high speed yarn cone winding machine price
|
Bobbin type: |
5"(170mm) |
|
Layout |
Double-side, can be 60 spindles |
|
Power Supply |
380V/220V 50/60HZ |
|
Driving |
Every spindle per motor |
|
Power Comsumption |
0.09KW/spindle |
|
Take-up package |
Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15 |
|
Yarn tension and waxing device |
Every spindle has a yarn tension and waxing device |
|
Auto Stop Device |
Each spindle install auto stop device |
|
Electronic Anti-Stack |
Inverter control |
|
Cleaner device |
Every spindle has a Mechanical Knife yarn cleaner |
|
Electronic Yarn Cleaner |
Optional installed |
|
Air Splicer |
Optional installed |
|
Blower cleaner |
Optional installed |
|
Lighting System |
Included |
|
Dimensions |
L 13700 x W 1150 x H 1600 mm |
Equipments:
Inverter(MITSUBISHI Brand), Drum(Superplastic Alloy), Motor(Ningbo), Controller(HangZhou)
Parameters:
|
1. Drive: every spindle per motor 2. Winding speed: 300-1000 M/min 3. Has function of auto stop when yarn break. 4. Package Dia≤ 250mm; Take-up Traverse: 150mm; 5. Each spindle with length counter; 6. Advanced control panel; |
TS008M High Speed Tight(Hard) winding machine, it’s mainly for the yarn After Dyeing rewinding or yarn rewinding using cone to cone directly, suit for winding like Fiber yarns, Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.
