Wool yarn cone winder machine
Product Specification

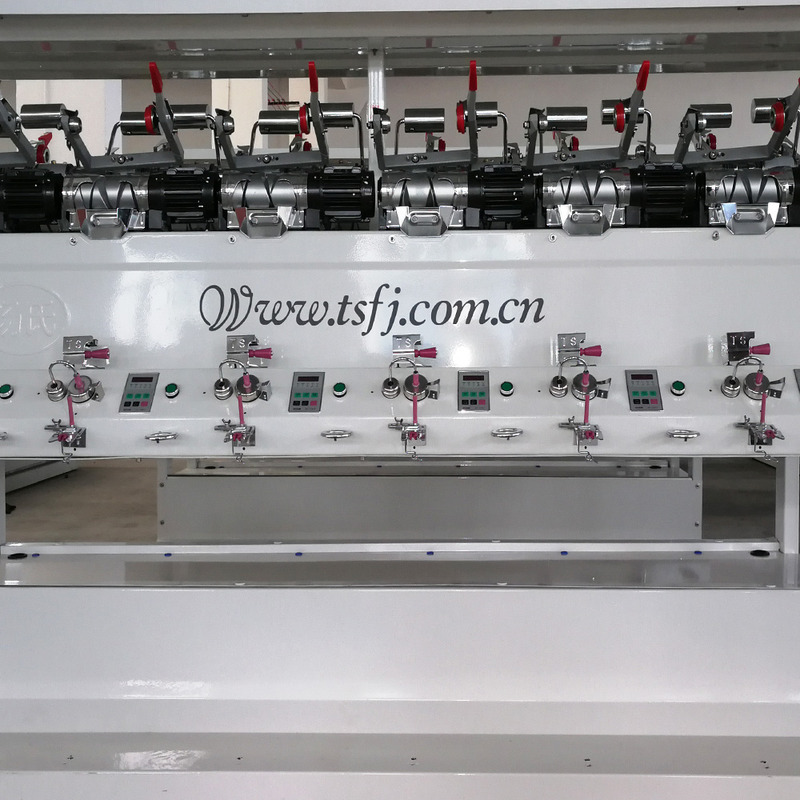

TS008S High Speed Soft Cone Winding Machine——its function is to wind perfect soft cone for yarn cone dyeing and it is suitable for winding cotton yarn, wool yarn, polyester yarn,etc.
Product Parameter
Bobbin type | 6"(170mm) |
Layout | Double-side, can be 12-120 spindles |
Voltage | 380v/220v±10% 50/60HZ |
Motor power | 90w/spindle |
Working speed | 100-1000m/min |
Take-up package | Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15 |
Winding traverse | 152mm |
Max.package diameter | 250mm |
Yarn tension | Every spindle with disc tensioner |
Driving | Every spindle per motor |
Auto stop device | Each spindle has yarn detector |
Length counter | Each spindle has length counter |
Electronic yarn clearer | Optional installed |
Air splicer | Optional installed |
Blower cleaner | Optional installed |
Dimensions | L11650 x W 1150 x H 1600 mm (60 spindles) |
Main Feature
1.Winding speed is 100-1000meter/min,which can be adjusted according to your yarn. Cotton: about 800M/min, Fiber : about 600 M/min,etc. (Density: 0.2-0.4g/cm³)
2.The winding speed and length of all the spindles can be set the same and shown on the touch screen. Also,each spindle is individual and has length counter. Winding speed and take-up length of each spindle can be set differently and shown on each control panel.
3.Each spindle has systems of Anti-Hard-Edge and Electronic Anti-overlapping.
4.Each spindle has auto-stop device(motion sensor/yarn detector).When the yarn broken or the yarn cone finished,the motor of the spindle will immediately stop.
Company Profile
We are Tangshi Textile Machinery Co.,Ltd ,an experienced and professional manufacturer of yarn winding machine including yarn hard cone winding machine,soft cone winding machine,yarn doubling and twisting winding machine,hank to cone winding machine,sewing thread winding machine,etc. Our company was established in 1993 and locates in 1#,Chaoyang Road,Minzheng industry park,XingHua city,Jiangsu province,China. We set up Tangshi research and development center in 21st Dec,2014. For providing customers with best quality and most valuable yarn winding machines,we spend all our savings making research and improvement on our machines.
Packaging & Shipping
Before loading,the machines are covered with waterproof plastic first,then packed in solid wooden case.
