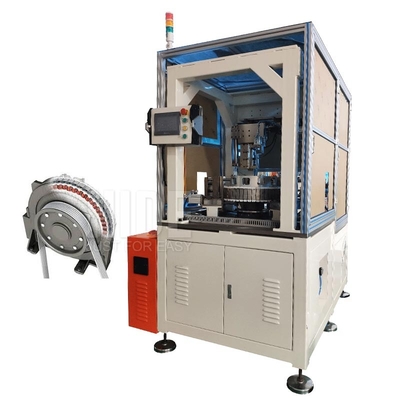

Automatic Elevator Motor Coil Winder High Efficiency Elevator Motor Winding Machine / BLDC Traction Motor Stator Coil Winding Maker

1.0 Sets
MOQ
Automatic Elevator Motor Coil Winder High Efficiency Elevator Motor Winding Machine / BLDC Traction Motor Stator Coil Winding Maker
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Engine, Gearbox, Motor, Gear, Pump
Warranty: 1 Year, 1 Year
Applicable Industries: Manufacturing Plant
Showroom Location: Brazil, India
Name: Automatic Elevator motor stator winding machine
After-sales Service Provided: Overseas service center available, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
인증: Main electric components are CE certificated.
Type: Fully Automatic
Color: Customer Requirement
Application: Elevator motor coil winding machine
Voltage: 380V
Weight: 800kg
Dimensions: 1000*1200*2200mm
After Warranty Service: Video technical support, Online support
Local Service Location: Turkey, United States, Italy, Viet Nam, Brazil, India, Mexico, Thailand, Argentina, South Korea
기본 정보
인증: Main electric components are CE certificated.
결제 및 배송 조건
Packaging Details: The automatic Elevator motor stator coil winding machine is Suitable for sea transportation
Supply Ability: 600 Set/Sets per Year
제품 설명
Product Description

Automatic Elevator motor winding machine for BLDC Traction motor stator and external armature coil winding

(1) Machine induction:

This motor winding machine is designed for the Elevator motor stator coil winding. Equipped with the servo control system, able to diagnose the fault, count the output etc. Adopts needle winding technology, Greatly improved production efficiency. The other function such as auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed, easy for operation and maintenance.

(2) Application:

The motor coil winding machine is suitable for Elevator traction motor stator and other BLDC external armature.

(3)Function and Characteristics:

1. The motor winding machine is suitable for multi-pole motor stator coil winding. Manual loading and unloading, automatic clamping, winding and shearing.

2. Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time;

3. PLC control, fault display ;

4. The frame adopts thickened aluminum profile, and the table plate adopts cast iron to absorb vibration, even when winding at high speed, the vibration is very small.

5. Different stator and winding parameters can be quickly switched through the HMI to adapt to different stator requirements.

6. Quick change-over of tooling;

7. Equipment safety index: accord with CE standard.

8. Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.

9. The wire tightness is moderate, no injury, no breakage, etc.

(4) Technical parameter:

Product name: Automatic Elevator motor winding machine/BLDC needle winder
Stator I.D.: 20-80mm (Other specifications can be specially designed)
Stator O.D.: 50-120mm(Other specifications can be specially designed)
Stator stack length: 10-80mm(Standard stroke); 100-200mm(Long stroke, special customization)
Wire dia.: 0.5-1.5mm(Other specifications can be specially designed)
Applicable pole number : multi polar
Motor winding method : Needle winding
Winding stations : one
Type: Automatic
Spindle speeds : 0--300 RPM (adjustable)
Voltage: 380V/50HZ Three phase four wires
Air pressure: 0.5--1Mpa
Power: 20KW
Dimension: 1000*1200*2200mm
Weight: 800kg

(5) Picture show

More Information

Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries . Among the customers, many of them are the world-renown companies.

Customerized service 1. Customized product design and manufacturing
2. Customized tranning
3.Technical suggestions
After-sales service 1. Warranty Period: 12 month usually
2. Overseas service center available
3. Engineers available to service overseas
