Factory automatic ceiling fan table fan motor stator wind turbine coil winding maker equipment for sale

1.0 Sets
MOQ
Factory automatic ceiling fan table fan motor stator wind turbine coil winding maker equipment for sale
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Engine, Motor
Warranty: 1 Year
Applicable Industries: Manufacturing Plant
Showroom Location: Brazil, India
After-sales Service Provided: Overseas service center available, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
인증: Main electric components are CE certificated.
Machine certificate: CCC
Name: ceiling fan machine
After Warranty Service: Video technical support, Online support
Local Service Location: Turkey, United States, Italy, Viet Nam, Brazil, India, Mexico, Thailand, Argentina, South Korea
기본 정보
인증: Main electric components are CE certificated., CCC
결제 및 배송 조건
Packaging Details: Suitable for sea transportation
Supply Ability: 60 Set/Sets per Month
제품 설명
Product Description

Vertical Coil Winding Machine

(1) Main technical data

Winding head: 1pc

Wire diameter: 0.2~1.2mm

Winding speed: ≤2500RPM

Max stack OD: 160mm

Max stack height: 100mm

Fly fork diameter: 300mm

Transfer number: 1~5 section

Power supply: 380V/50/60HZ 7KW

Weight: about 1000kg

Dimension: L2400*W1000*2450mm

(2) Application:

This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

(3) Machine main function and characteristic

Winding tooling: each machine has one set winding tooling and three vertical winding forms.

The whole set of tooling can be changed, and it takes about 15min.

The turntable is two stations structure. It adopts servo system to rotate and index transfer form.

Allow three wires winding simultaneously.

Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.

The working rotation speed can be set . Machine has no distinct vibration and noise.

Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.

PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.

X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.

Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.

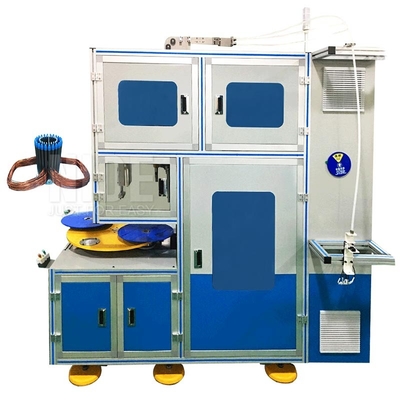

(4)The stator coil winding machine picture

Stator production

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

More Information

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.

Customerized service 1. Customized product design and manufacturing
2. Customized tranning
3.Technical suggestions
After-sales service 1. Warranty Period: 12 month usually
2. Overseas service center available
3. Engineers available to service overseas

Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.


Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
