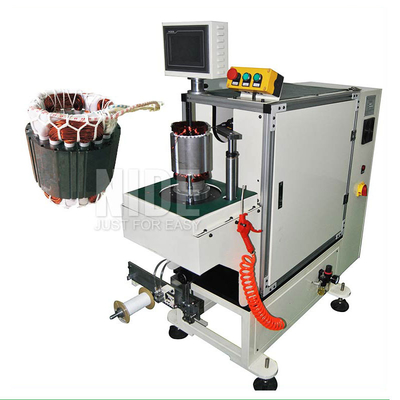

factory cooler motor stator winding automatic lacing machine for electric motor manufacture

1.0 Sets
MOQ
factory cooler motor stator winding automatic lacing machine for electric motor manufacture
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Engine, Motor
Warranty: 1 Year
Applicable Industries: Manufacturing Plant
Showroom Location: Brazil, India
After-sales Service Provided: Overseas service center available, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
인증: Main electric components are CE certificated.
Color: RAL9010 or as per customer requirement
Name: automatic stator lacing machine
Used for: auto lacing machine
After Warranty Service: Video technical support, Online support
Local Service Location: Turkey, United States, Italy, Viet Nam, Brazil, India, Mexico, Thailand, Argentina, South Korea
기본 정보
인증: Main electric components are CE certificated.
결제 및 배송 조건
Packaging Details: Suitable for sea transportation
Supply Ability: 800 Set/Sets per Year
제품 설명
Product Description

This stator lacing machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

(1) Technical data
Stator ID: 40~100mm
Stator OD: Max. 160mm
Stack length: 30~160mm
Over-hang height: Max. 45mm
Lacing mode: slot by slot/ interval slot/ fancy lacing
Lacing speed: 0.5s/s
Power: 380V/50/60HZ 3.5KW
Machine weight: about 600kg
Machine dimension: L1500*W650*H1700mm


(2) Machine main function and characteristic
This stator lacing machine adopts servo driven system, CNC control design and HIM program.
The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.
Main spindle adopts servo control system. The rotation speed can be set.
Two needles driven by servo system lace upper and lower coil simultaneously.
Machine can automatically feed thread and cut thread. There is no need to tie a knot.
Tooling change is fast and convenient. Stator stack length range is 50-130mm.
Lacing tension can be set,
Production capacity ≤1s/slot.
Should be no copper wire snap and wire enamel broken.
Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%
his machine adopts safety grating protection system. Operator need to stand when operating.
Machine adopts two hands simultaneously start button to ensure safety.

Stator lacing machine running process

More Information

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.

Customerized service 1. Customized product design and manufacturing
2. Customized tranning
3.Technical suggestions
After-sales service 1. Warranty Period: 12 month usually
2. Overseas service center available
3. Engineers available to service overseas

Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.


Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
