Electric Motor Stator Coil Winding CNC Semi Automatic Stator Coil Making Winding Electric Motor Winding Machine with 4 Winding Heads

1.0 Sets
MOQ
Electric Motor Stator Coil Winding CNC Semi Automatic Stator Coil Making Winding Electric Motor Winding Machine with 4 Winding Heads
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Max. Load (KG): 100 KG
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Engine, Gearbox, Motor, Gear, Pump
Coil Type: copper
Length of Axis (mm): 1000 mm
Center Height (mm): 1000 mm
Max.Transformer Capacity(kVA): 1000 kVA
CNC or Not: CNC
Motor Power (kw): 0.75
Weight (KG): 750
Dimension(L*W*H): L1550*W1250*1300mm
Wire Diameter Range (mm): 0.2 - 1 mm
Warranty: 1 Year
Key Selling Points: Easy to Operate
Applicable Industries: Manufacturing Plant
Showroom Location: Brazil, India
Name: Motor coil winding machine
After-sales Service Provided: Overseas service center available, Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support
인증: Main electric components are CE certificated.
Application: electric motor stator coil winding
Type: semi automatic
Color: Customer Requirement
Voltage: 220V
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Turkey, United States, Italy, Viet Nam, Brazil, India, Mexico, Thailand, Argentina, South Korea
기본 정보
인증: Main electric components are CE certificated.
결제 및 배송 조건
Packaging Details: Suitable for sea transportation
Supply Ability: 20 Set/Sets per Month
제품 설명

Semi auto multi-tap wire array automatic coil winding machine for electric motor

(1) Application of the motor coil winding machine

The semiautomatic motor coil winding machine can arrange coils for multi-connection and multi-layer windings. Can be used for a variety of micro-motors, such as induction motors, pump motors, air-conditioning motors, three-phase motors.

When the coil winding machine working, it is only necessary to manually fix the winding position, and the coil winding machine can automatically wind the winding to complete the winding, and manually take out the wound coil.

(2) Technical data

Product name: Semi auto electric motor automatic coil winding machine
Model: RX1-100
Winding head: 4pc

Wire diameter:

0.2~1.0 mm

Former diameter: 250mm
Transfer distance: 170mm
Winding speed: 3200RPM
Flier track: 200mm
Transfer number: 2~6section
Power supply: 220V/50/60HZ
Inverter:

1.5KW

Motor power:

0.75 KW

Weight: about 750kg
Dimension: L1550*W1250*1300mm

(3) Main functions and features of the coil winding machine

The motor coil winding machine is equipped with four winding heads, which can be wound with 1-4 sets of coils at the same time to improve production efficiency.

Replacing the grinding tool is quick and easy.

It can save 999 sets of data, and the machine will stop automatically once the line runs out.

Maintenance free later.

(4) Main structure of the coil winding machine

The motor coil winding machine is mainly composed of a frame, a winding part and a cable part.

The power output system includes one 0.75 kW motor, one brake, and one stepper motor.

The control system includes one controller, one inverter, and the like.

The main structure includes molds, racks, distribution boxes, wire racks and so on.

(5)Coil winding machine working principle

The motor coil winding machine adopts a special winding machine controller for parameter control.

The 0.75 kW motor is driven by a belt to drive the spindle to rotate.

The square shaft is rotated by the coupling member, and the mold is fixed on the square shaft to rotate, thereby realizing the winding function.

The stepping motor rotates the synchronous wheel through the timing belt to drive the screw to move, and the light rod connected with the screw rod moves accordingly, and the working head fixed on the polished rod moves left and right to realize the cable arranging function.

The CNC controller can realize the functions of winding direction, cable direction, wire diameter, number of coils, automatic homing, and automatic start.

(6)Coil winding machine picture show

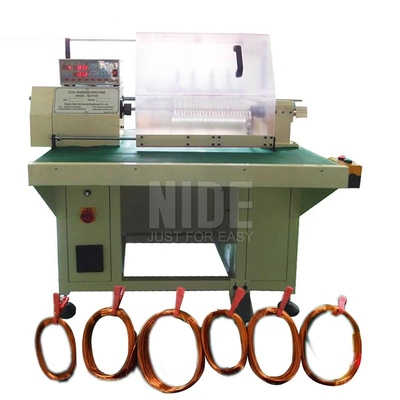

1.The motor stator coils show

2.The motor coil winding machine mold display

3.The motor coil winding machine working display

More Information

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.

Customerized service 1. Customized product design and manufacturing
2. Customized tranning
3.Technical suggestions
After-sales service 1. Warranty Period: 12 month usually
2. Overseas service center available
3. Engineers available to service overseas

Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.


Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
