Factory 2 Stations External Fan Motor Armature Winding Machine For Mini Fan Auto Coil Winding

1.0 Sets
MOQ
Factory 2 Stations External Fan Motor Armature Winding Machine For Mini Fan Auto Coil Winding
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Engine, Bearing
Warranty: 1 Year
Applicable Industries: Manufacturing Plant
Showroom Location: Brazil, India
Name: External Armature Winding Machine
Type: Fully Automatic
After-sales Service Provided: Overseas service center available, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
인증: Main electric components are CE certificated.
Color: RAL9010 or as per customer requirement
After Warranty Service: Video technical support, Online support
Local Service Location: Turkey, United States, Italy, Viet Nam, Brazil, India, Mexico, Thailand, Argentina, South Korea
기본 정보
인증: Main electric components are CE certificated.
결제 및 배송 조건
Packaging Details: Suitable for sea transportation
Supply Ability: 800 Set/Sets per Year
제품 설명
Product Description

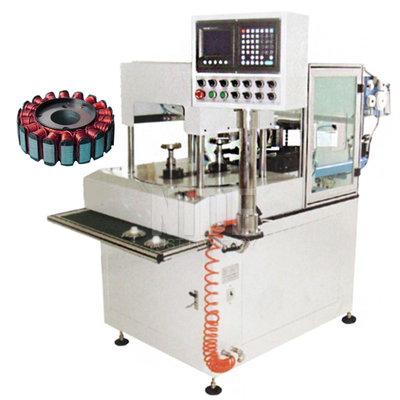

ND-TDS-2 External Armature Winding Machine

Fan Motor External Armature Winding Machine

(1) Main technical data:

Wire diameter:0.15~1.5mm

Stator O.D:15~260mm

Stack length:7~60mm

Turn number:0~9999

Slot number:Multi poles

Winding speed:0~1500RPM

Air pressure:5~7kg/cm2

Power supply:220V/50/60Hz

Total power:2.5KW

Weight:600Kg

Dimension:1150*2350*1500m

(2) Application:

This External Armature Winding Machine is used for external armature winding.

(3) Machine function and characteristic

Automatically indexing, automatically winding, only load and unload armature manually. It is easy for operation. And with the machine high automation, it is more cost-efficient.

More Information

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.

Customerized service 1. Customized product design and manufacturing
2. Customized tranning
3.Technical suggestions
After-sales service 1. Warranty Period: 12 month usually
2. Overseas service center available
3. Engineers available to service overseas

Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.


Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
